credit-card-size, Programmer
Calculadora para programadores DM16C
149,00 CHF
La DM16C es una calculadora para programadores con un formato compacto, del tamaño de una tarjeta de crédito. Está diseñada para mostrar y trabajar con números en formato hexadecimal, decimal, octal y binario, así como para convertir números de una base a otra. Ofrece una amplia gama de funciones especializadas, entre las que se incluyen el desplazamiento a la izquierda y a la derecha, el enmascaramiento y las operaciones lógicas bit a bit.
Características de la calculadora Calculadora para programadores DM16C
- Integer and floating point math.
- Selectable word size up to 64bits
- Shift functions: left and right, arithmetic and logical.
- Rotate functions: Rotate a single position or n positions left or right, through carry or not.
- Left justify the bits of a word.
- Masking: Create masks to mask left or right n bits.
- #B: return the number of bits set in a word
- Multiply/Divide: Provides functions for multiplying single precision numbers into single precision or double precision results. Likewise, allows single or double precision dividends.
- Bitwise Logic: and, or, not, xor
- Bit setting and testing
- Flag setting and testing: (user flags and overflow/carry)
Características de hardware de Calculadora para programadores DM16C
- Rugged design based on a Titanium shell — the size of a credit card
- USB I/O for complete calculator contents backup
- Single coin-cell operation
- Low power — long battery life
- Voyager Flashing Tool
Update your calculator's firmware
- Voyager WebTool
Program conversion and Flashing tool for Voyager series calculators
| Aspecto | Detalles |
|---|---|
| Construction | Case made from a sand-blasted Grade 1 Titanium housing, brown anodized and laser engraved |
| Software | ARM microcontroller emulating the NUT processor |
| Processor | LPC1115 32-bit ARM Cortex-M0 microcontroller |
| Memory | 64 kB internal flash, 8kB RAM |
| Display type | Reflective Positive FSTN |
| Display resolution | 132 × 16 pixels |
| Display active area | 69.1 × 10.0 mm |
| Display dot pitch | 524 × 626 µm |
| Connectivity (PC) | USB-C port for firmware update and data exchange via CDC |
| Battery type | 1 × CR2032 lithium coin cell, 3.0 volts |
| Battery life | Up to 5 years |
| Sound | 4 kHz resonance frequency Piezo-electric buzzer |

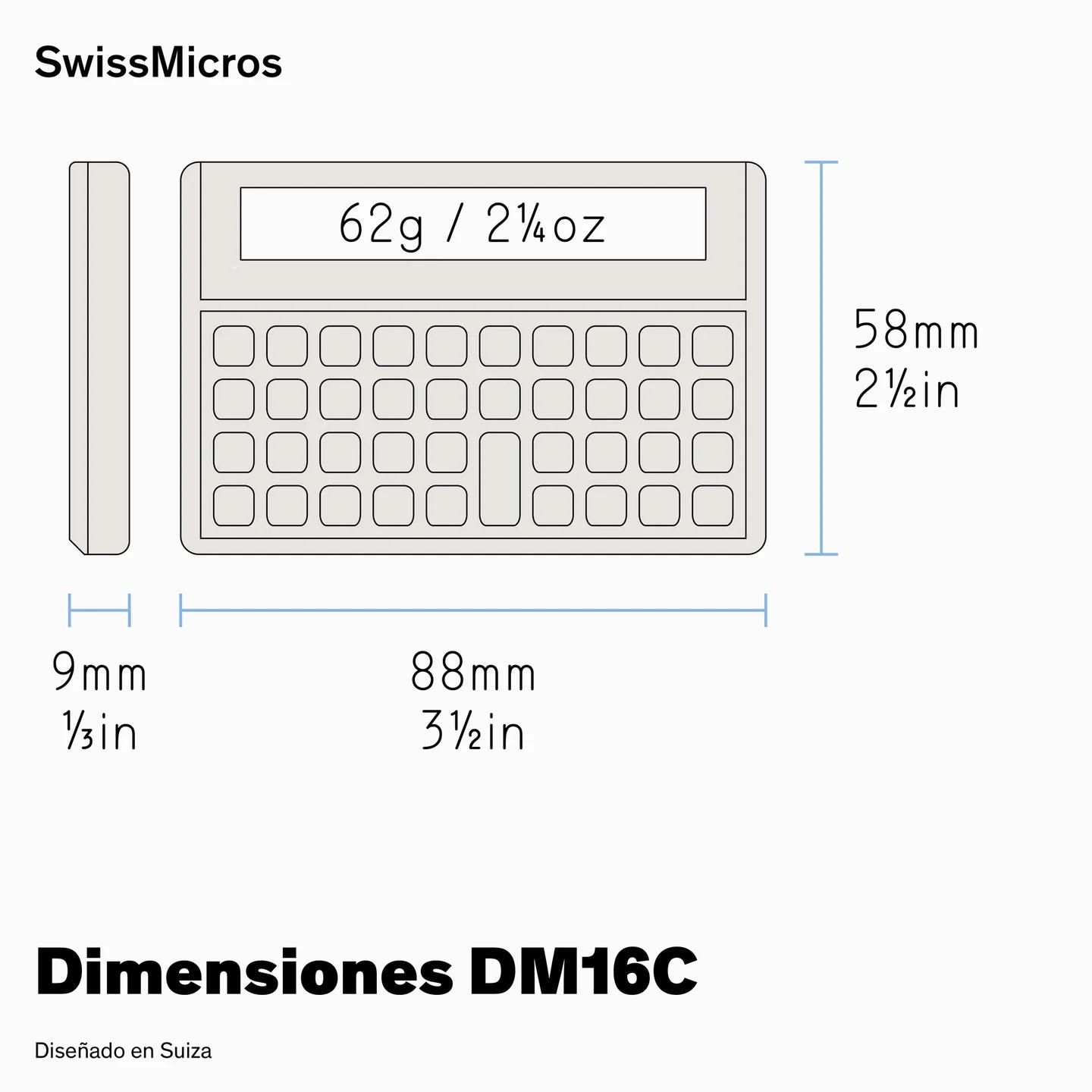

| Size | 88 × 58 × 9 mm |
| Weight | 62 g |
| Warranty | 5 years |
