DM16C

Credit Card size
DM16C

Description

Credit Card sized!

The DM16C is the programmer's calculator designed to display and work with numbers in hexadecimal, decimal, octal and binary, and convert numbers from one base to another. It provides a wealth of specialized functions, including left- and right-shifting, masking, and bitwise logical operations.

Comes with genuine leatherette pouch.

DM16C calculator features

  • Integer and floating point math.
  • Selectable word size up to 64bits
  • Shift functions: left and right, arithmetic and logical.
  • Rotate functions: Rotate a single position or n positions left or right, through carry or not.
  • Left justify the bits of a word.
  • Masking: Create masks to mask left or right n bits.
  • #B: return the number of bits set in a word
  • Multiply/Divide: Provides functions for multiplying single precision numbers into single precision or double precision results. Likewise, allows single or double precision dividends.
  • Bitwise Logic: and, or, not, xor
  • Bit setting and testing
  • Flag setting and testing: (user flags and overflow/carry)

Firmware V33, released in December of 2024, has brought significant enhancements:

  • 2-Line Display, including opcodes in PGM mode
  • Verbalized error messages
  • Setup Menu for easy access to configuration items
  • Function preview / cancel (similar to HP-41)
  • Expanded RAM for larger programs or more storage available in Firmware versions ending with MC0
  • Enhanced SHOW mode lets you see all digits in HEX, OCT, and DEC modes

DM16C hardware features

  • Rugged design based on a Titanium shell — the size of a credit card
  • USB I/O for complete calculator contents backup
  • Single coin-cell operation
  • Low power — long battery life

Please find the online Voyager Series User Manual

Specifications

Aspect Details
Construction Case made from a sand-blasted Grade 1 Titanium housing, brown anodized and laser engraved
Software ARM microcontroller emulating the NUT processor
Processor LPC1115 32-bit ARM Cortex-M0 microcontroller
Memory 64 kB internal flash, 8kB RAM
Display type Reflective Positive FSTN
Display resolution 132 × 16 pixels
Display active area 69.1 × 10.0 mm
Display dot pitch 524 × 626 µm
Connectivity (PC) USB-C port for firmware update and data exchange via CDC
Battery type 1 × CR2032 lithium coin cell, 3.0 volts
Battery life Up to 5 years
Sound 4 kHz resonance frequency Piezo-electric buzzer

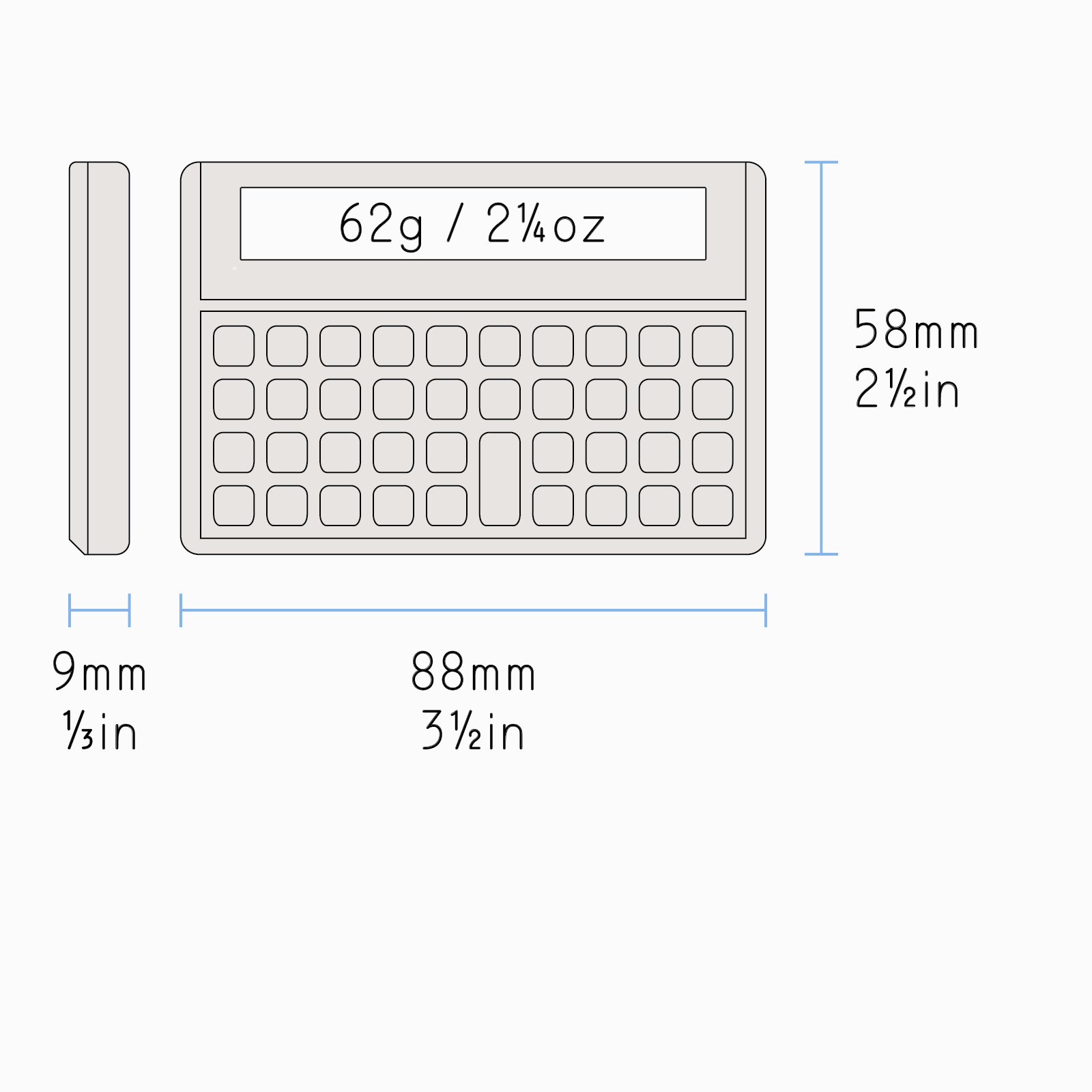

Size 88 × 58 × 9 mm
Weight 62 g
Warranty 5 years
