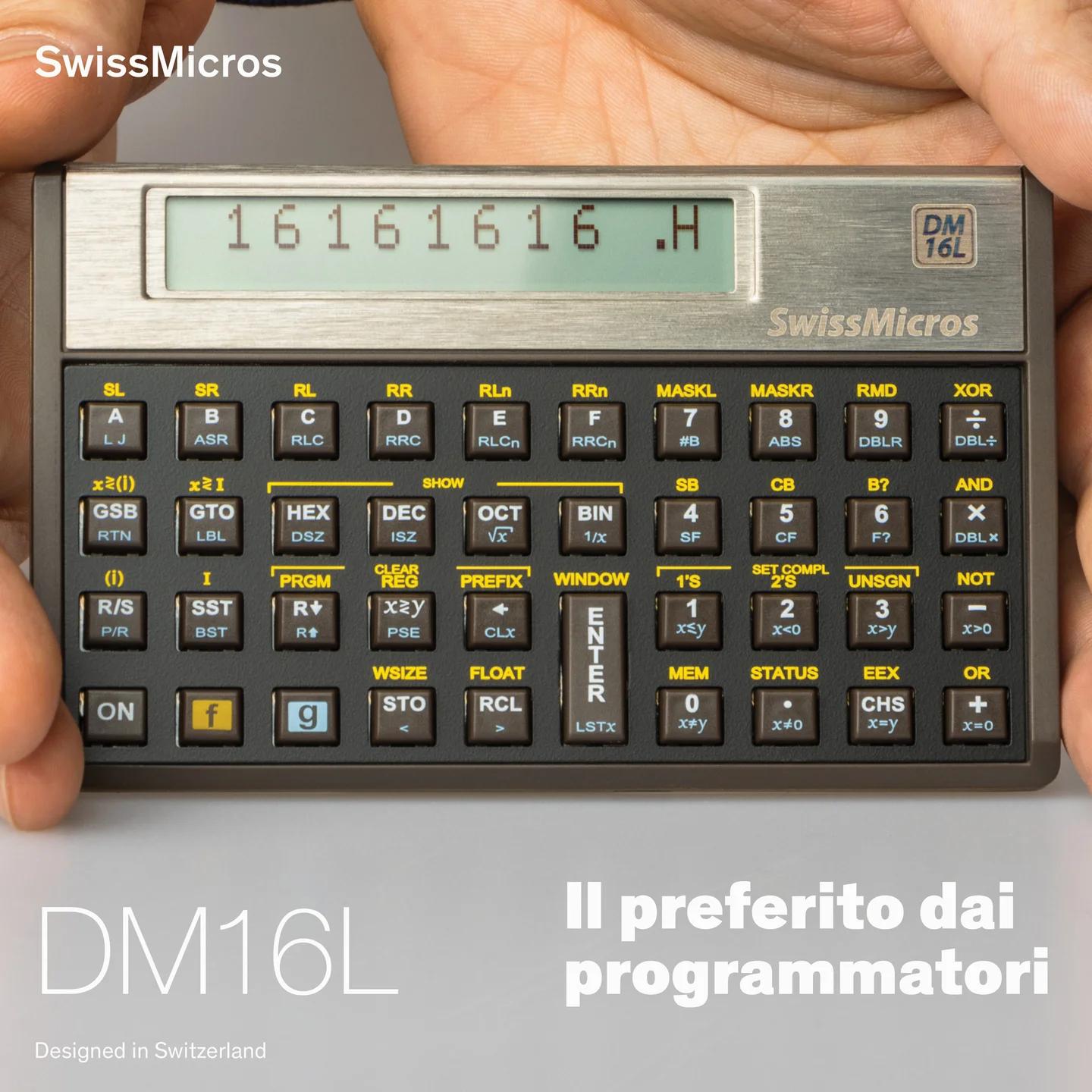

Calcolatrice per programmatori DM16L

CHF 149.00

Il DM16L è una calcolatrice per programmatori progettata per visualizzare e gestire numeri in formato esadecimale, decimale, ottale e binario, nonché per convertire i numeri da una base all'altra. Offre una vasta gamma di funzioni specializzate, tra cui lo spostamento a sinistra e a destra, il mascheramento e le operazioni logiche bit a bit.

Caratteristiche del calcolatore Calcolatrice per programmatori DM16L

Integer and floating point math.
Selectable word size up to 64bits
Shift functions: left and right, arithmetic and logical.
Rotate functions: Rotate a single position or n positions left or right, through carry or not.
Left justify the bits of a word.
Masking: Create masks to mask left or right n bits.
#B: return the number of bits set in a word
Multiply/Divide: Provides functions for multiplying single precision numbers into single precision or double precision results. Likewise, allows single or double precision dividends.
Bitwise Logic: and, or, not, xor
Bit setting and testing
Flag setting and testing: (user flags and overflow/carry)

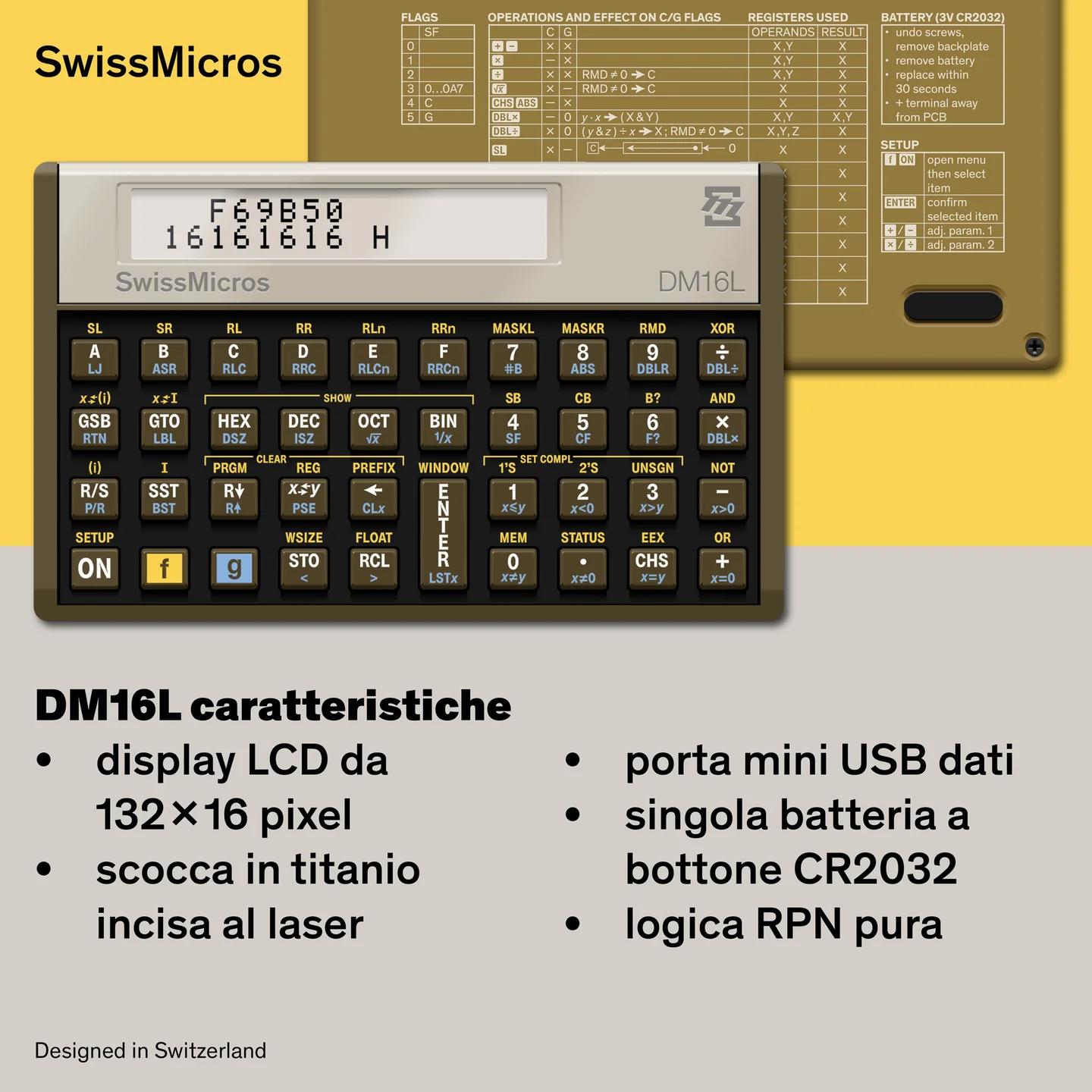

Caratteristiche hardware di Calcolatrice per programmatori DM16L

Rugged design based on a Titanium shell
USB I/O for complete calculator contents backup
Single coin-cell operation
Low power — long battery life

Aspetto	Dettagli
Construction	Case made from a sand-blasted Grade 1 Titanium housing, brown anodized and laser engraved
Software	ARM microcontroller emulating the NUT processor
Processor	LPC1115 32-bit ARM Cortex-M0 microcontroller
Memory	64 kB internal flash, 8kB RAM
Display type	Reflective Positive FSTN
Display resolution	132 × 16 pixels
Display active area	69.1 × 10.0 mm
Display dot pitch	524 × 626 µm
Connectivity (PC)	USB-C port for firmware update and data exchange via CDC
Battery type	1 × CR2032 lithium coin cell, 3.0 volts
Battery life	Up to 5 years
Sound	4 kHz resonance frequency Piezo-electric buzzer

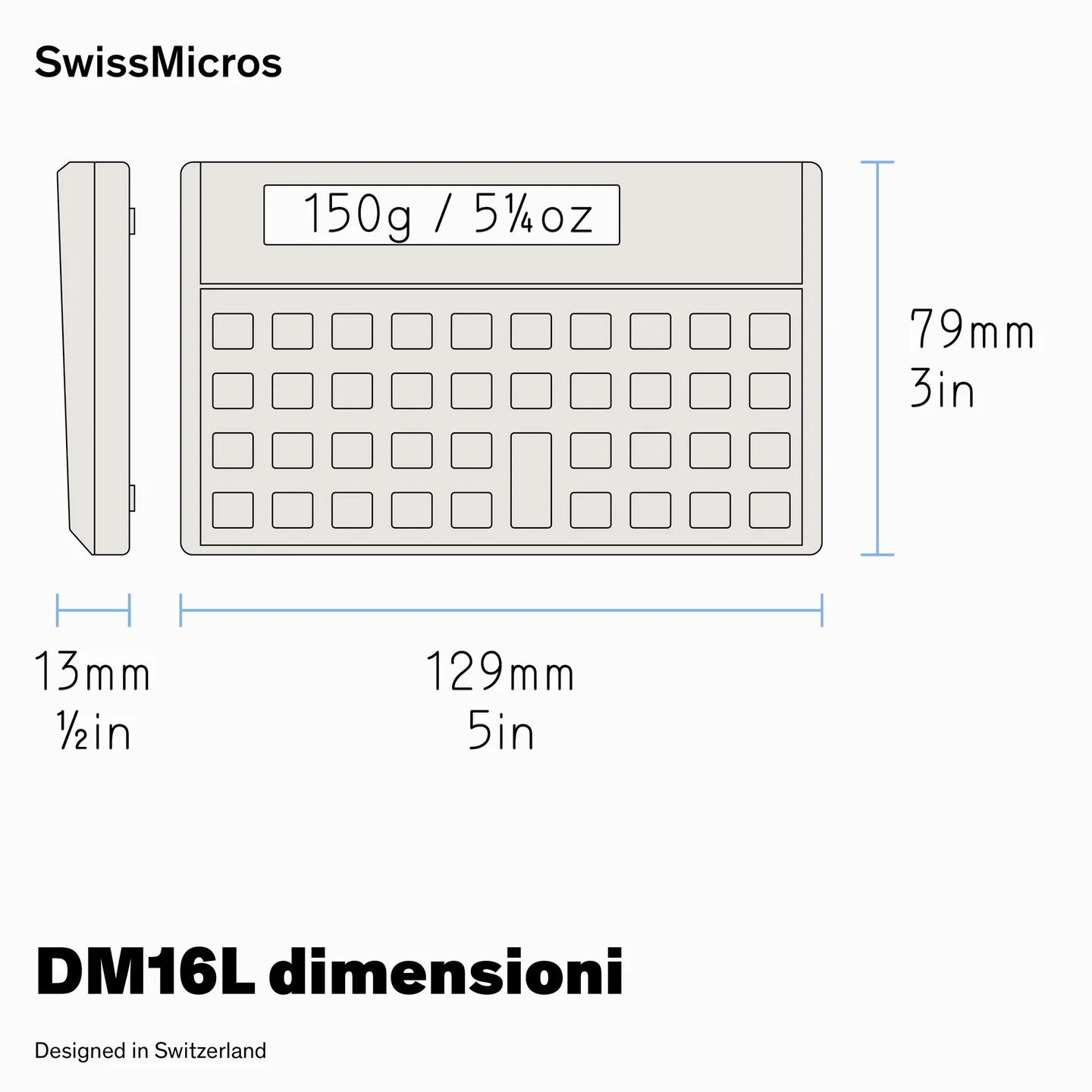

Size	129 × 79 × 13 mm
Weight	150 g
Warranty	5 years
