DM16L プログラマー用電卓

CHF 149.00

DM16Lは、16進数、10進数、8進数、2進数の数値を表示・処理し、異なる基数間の変換を行うことができるプログラマー向け電卓です。左シフトや右シフト、マスク演算、ビット単位の論理演算など、豊富な専門機能を備えています。

Integer and floating point math.
Selectable word size up to 64bits
Shift functions: left and right, arithmetic and logical.
Rotate functions: Rotate a single position or n positions left or right, through carry or not.
Left justify the bits of a word.
Masking: Create masks to mask left or right n bits.
#B: return the number of bits set in a word
Multiply/Divide: Provides functions for multiplying single precision numbers into single precision or double precision results. Likewise, allows single or double precision dividends.
Bitwise Logic: and, or, not, xor
Bit setting and testing
Flag setting and testing: (user flags and overflow/carry)

外観	詳細
Construction	Case made from a sand-blasted Grade 1 Titanium housing, brown anodized and laser engraved
Software	ARM microcontroller emulating the NUT processor
Processor	LPC1115 32-bit ARM Cortex-M0 microcontroller
Memory	64 kB internal flash, 8kB RAM

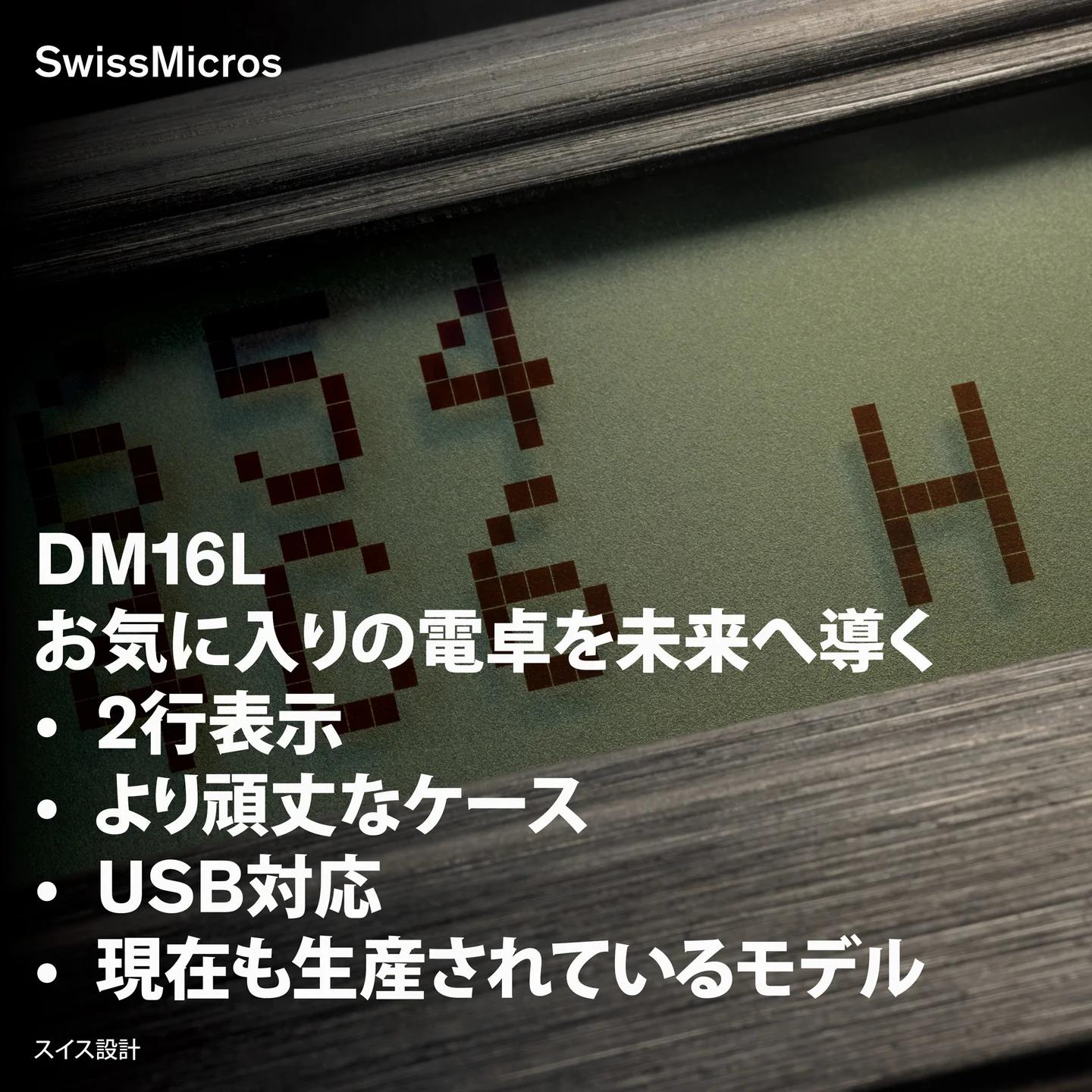

Display type	Reflective Positive FSTN

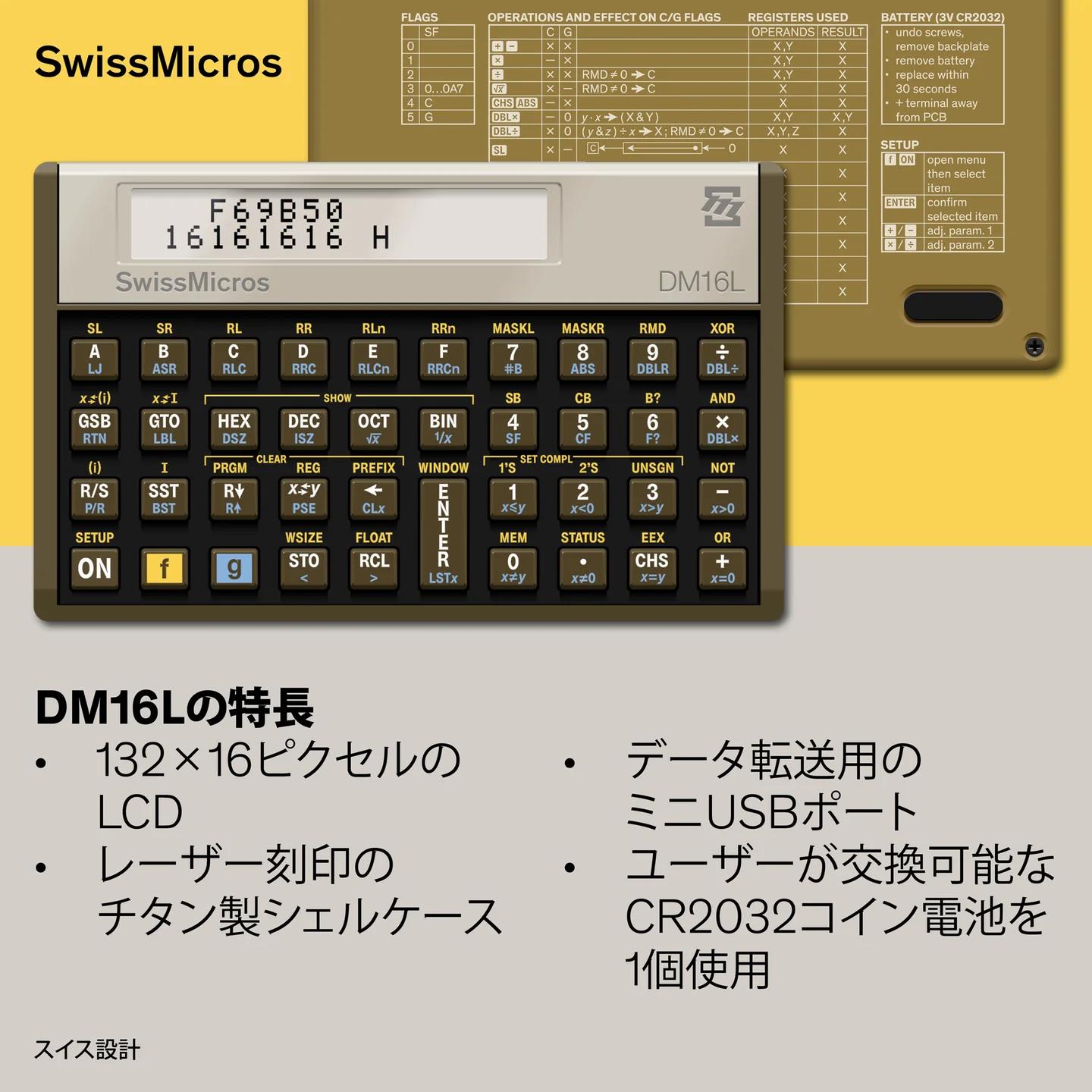

Display resolution	132 × 16 pixels
Display active area	69.1 × 10.0 mm
Display dot pitch	524 × 626 µm
Connectivity (PC)	USB-C port for firmware update and data exchange via CDC
Battery type	1 × CR2032 lithium coin cell, 3.0 volts
Battery life	Up to 5 years
Sound	4 kHz resonance frequency Piezo-electric buzzer

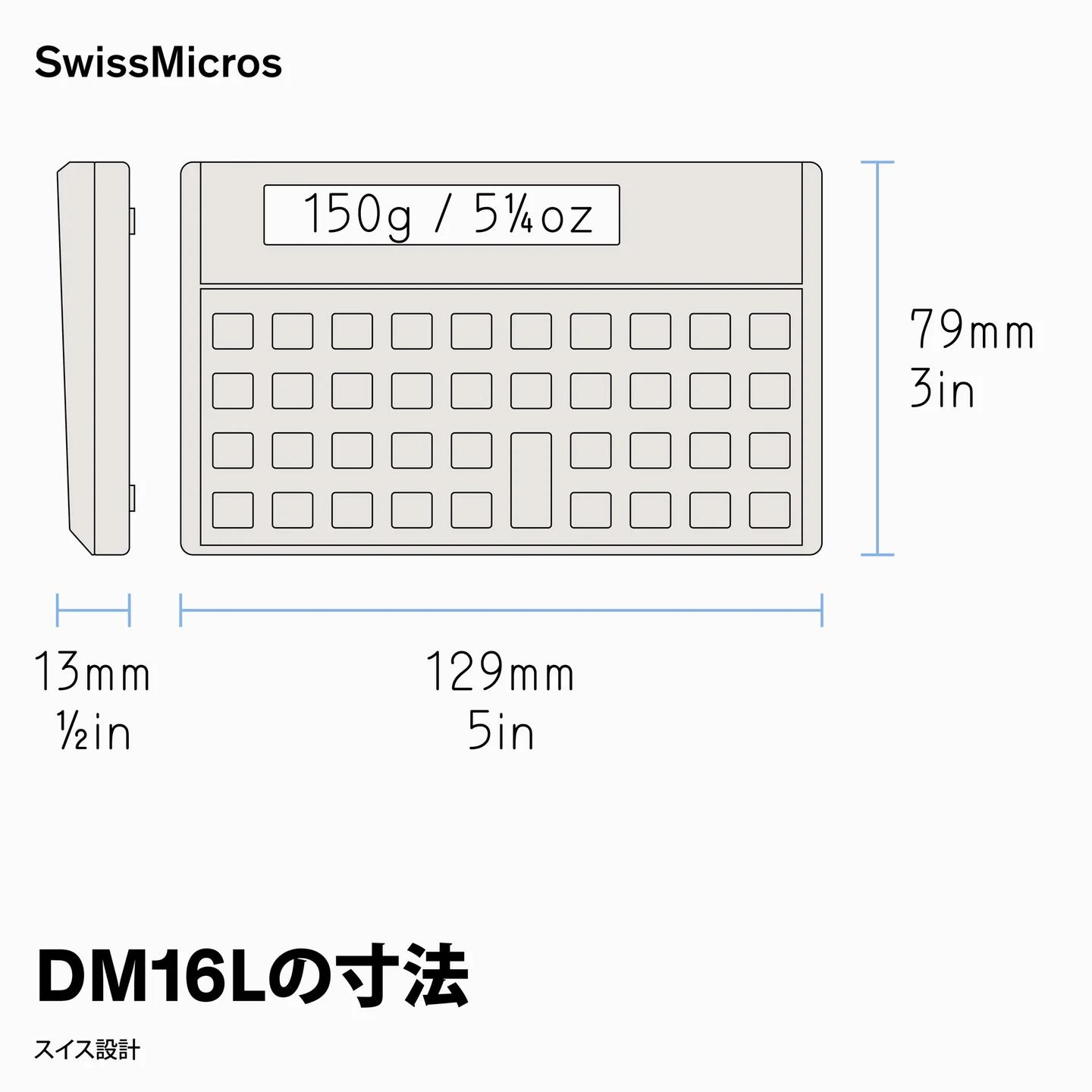

Size	129 × 79 × 13 mm
Weight	150 g
Warranty	5 years
