Scientific, Programmer
DM41L システム計算機
CHF 159.00
DM41Lは、Voyagerシリーズと同様の横向きレイアウトを採用したHP-41CXのクローン機であり、リアルタイムクロックを搭載しています。HP-41Cの英数字表示LCD画面は、計算機の使い方に革命をもたらし、(当時としては)高い使いやすさと拡張性(キーボードに割り当てられていない関数をアルファベットで入力できる)を実現しました。 英数字ディスプレイを採用したことで、この電卓は単にゼロが点滅するだけでなく、意味のあるエラーメッセージ(「ZERO DIVIDE」)を表示して、ユーザーに現在の状況を伝えることができました。また、単に疑問符を表示するだけでなく、ユーザーに具体的な引数を要求する(「ENTER RADIUS」)ことも可能になりました。
DM41L システム計算機 計算機の機能
- Modern clone in a modern hardware architecture
- Uses proven RPN logic
- Programmable
- Alphanumeric display
- Custom program labels
- Setup Menu for easy access to configuration items
DM41L システム計算機のハードウェア機能
- Rugged design based on a Titanium shell
- USB I/O for complete calculator contents backup
- Single coin-cell operation
- Low power — long battery life
- DM41 Encoder/Decoder
Convert programs for the DM41L and DM41X calculators
- Voyager Flashing Tool
Update your calculator's firmware
- Voyager WebTool
Program conversion and Flashing tool for Voyager series calculators
| 外観 | 詳細 |
|---|---|
| Construction | Case made from a sand-blasted Grade 1 Titanium housing, brown anodized and laser engraved |
| Software | ARM microcontroller emulating the NUT processor |
| Processor | LPC1115 32-bit ARM Cortex-M0 microcontroller |
| Memory | 64 kB internal flash, 8kB RAM |
| Display type | Reflective Positive FSTN |
| Display resolution | 132 × 16 pixels |
| Display active area | 69.1 × 10.0 mm |
| Display dot pitch | 524 × 626 µm |
| Connectivity (PC) | USB-C port for firmware update and data exchange via CDC |
| Battery type | 1 × CR2032 lithium coin cell, 3.0 volts |
| Battery life | Up to 5 years |
| Sound | 4 kHz resonance frequency Piezo-electric buzzer |

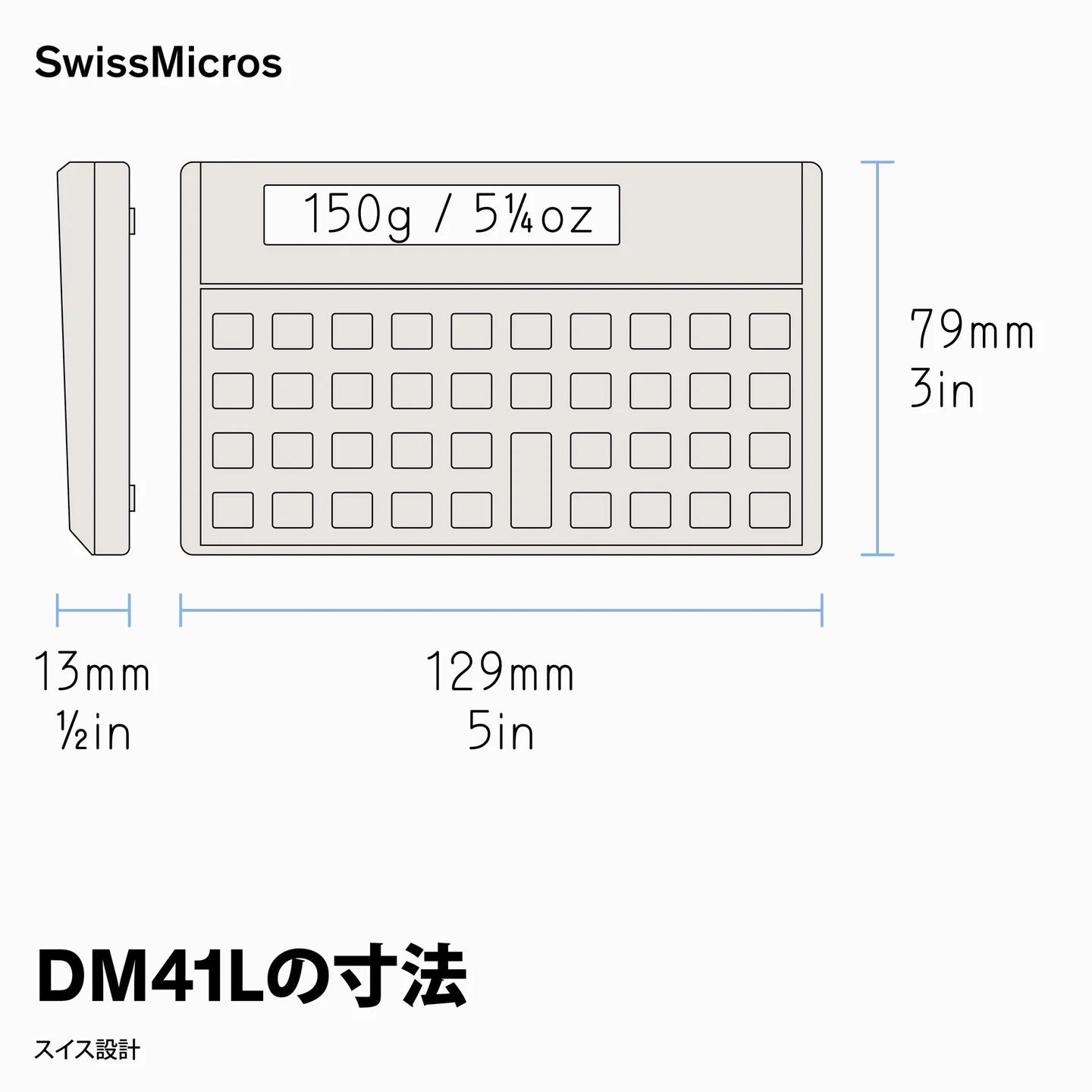

| Size | 129 × 79 × 13 mm |
| Weight | 150 g |
| Warranty | 5 years |
